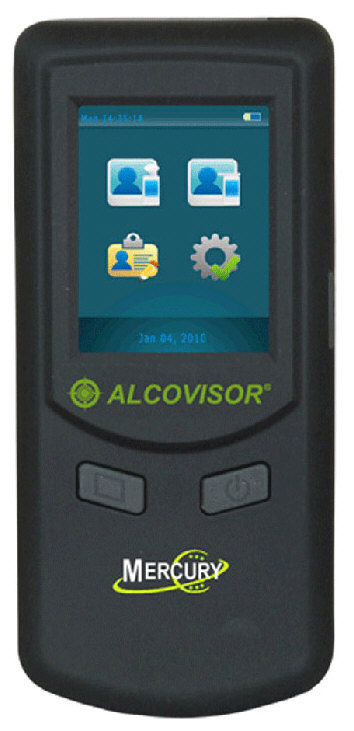

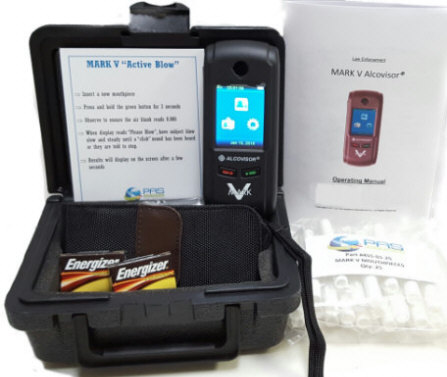

      D.O.T approved Evidential Alcohol Testers, Alcovisor Jupiter, Mercury and Mark V EBT devices


We offer small Loans

  (Leasing) Program







Passive Alcohol Detector & Flashlight





Great for DUI check points, School Dances, Security for Collages and local and State Police.

Helps formulate probable cause without the subject's involvement

"Sniffs" breath, open containers or enclosed spaces for the presence of alcohol




Sniffs for Alcohol Without a Mouthpiece
The PAS IV uses passive alcohol test technology to sniff the breath of a person or the interior of a car for the presence of alcohol. The PAS IV is designed to detect alcohol with or without the subjects participation. The operator positions the PAS IV flashlight close to a subjects face and asks them to talk or blow at the device. A fan inside the device pulls in a portion of the subjects breath to analyze for alcohol. Yellow and red lights come on to indicate the presence of alcohol.

Fuel Cell Sensor Specific for Alcohol
The P.A.S. IV uses a fuel cell to detect alcohol. Fuel cell sensors are typically used in top-of-the-line evidential breath alcohol testers because of their ability to detect low amounts of alcohol and because they are specific to alcohol. That means that operators using the PAS IV can have a high degree of confidence that positive results with the PAS IV are due only to alcohol.

Battery Charge Doubles as Storage Rack
The PAS IV flashlight comes equipped with a rechargeable NiMH battery pack and a battery charger that operates on AC or DC power. The PAS IV snaps securely into the battery charger cradle. When mounted in a car the charger also secures the device for ready, convenient access as it charges the batteries.

In addition to the LED lamp module, the PAS V now allows you to choose which of two secondary investigative lights you would like built into the back of the flashlight tube. You may select between the standard green HGN or the new blue UV light.


 Select between the:


standard green HGN   $679.00 ORDER


or the   blue UV light. $679.00 ORDER








Function Combines police-grade flashlight with device for detecting low levels of airborne alcohol in exhaled breath, in vehicles and other enclosed spaces, or over beverage containers
Flashlight 3-Mode LED lamp module: High, Low and Strobe. 1000 Lumens. Optimized light dispersion with intense center beam
Alcohol Sensor Platinum Electrochemical fuel cell generates an electrical current in response to alcohol vapor. The microcontroller will automatically turn off the sensor after about 45 seconds, should you forget to turn off the sensor.
Cell Heater Built-in heater regulates fuel cell temperature at 104F (40C) whenever the flashlight is on.
Specificity Fuel cell detects only alcohol. It is unaffected by acetone, paint or glue fumes, foods, confectionary, methane, and practically any other substance likely to be found in the breath.
Calibration Performed at the factory. Additional field calibration procedure provided. Calibration checks are recommended every six (6) months or more frequently if the unit appears to be losing sensitivity.
Air Sample Pump runs for 5 seconds and draws in a 1 cu. in. (15ml) air sample (nominal figures).
Display Color-coded 9-element LED bar graph display.
Peak Reading 2-10 seconds at 104F (40C). Longer at lower temperatures unless fuel cell heater is on.
Recovery Time 30 seconds - 2 minutes after a positive reading; longer if fuel cell is overloaded or heater is off.
Power Supply Nickel Metal Hydride (NiMH) rechargeable battery (no memory). Charger operable from 12-volt DC or 110-volt AC power.
Battery Capacity 2.3 amp-hrs; good for 80-90 minutes of continuous use if charged using the Reset procedure. Store unit in the charger to keep fully charged between use.
Charging Time Approx. 3.5 hrs to recharge fully discharged battery using the AC/DC Fast Charger Cradle Unit and the Reset procedure.
Environmental Operating temperature range: 0 to 104F (-18 to +40C). The PAS IV housing is weather resistant.
Dimensions 12" (300mm) long x 1.5" (38mm) diameter, increasing to 2.2" (56mm) at head.
Weight 1.5 lb (0.68kg) with batteries
Sensor type Electrochemical Oxidation (fuel cell)
Results Colored light bar graph
Breath sampling Breath sample intake fan, manual start
Response time 5 10 seconds negative results, 10 30 seconds positive results
Power requirement NiMH battery pack (included)
Test mode Passive
Calibration Using wet bath simulator or dry gas
Temperature range 10 40 C
Size 11 x 2, 1 lb 9 oz.
Warranty one-year parts and labor, two years fuel cell

Screening System comes complete with:





  • Carrying Case
  • AC Adapter
  • Auto Adapter
  • Recharging System


  • Rechargeable Battery
  • Quick Check Card
  • Instructional DVD
  • Instruction Manual
  • Calibration Manual
